Section.1
Development of a platform for higher-order immunological analysis
We believe that a more advanced analysis platform is needed to understand the characteristics of the complex human immune system and to identify problems.Therefore, our laboratory has developed a world-class analysis platform (high-level immunological analysis platform) that enables multifaceted, high-resolution analysis of differences in the immune system and responses to immunogens in each individual.
By utilizing the above platform, we hope to extract issues with current vaccines and therapies from analysis of various human clinical specimens, and to validate novel therapies or diagnostic biomarkers that solve such issues at the in vivo level in non-clinical studies using rodents and non-human primates, and hopefully return them to clinical use.
- 1. High-parameter flow cytometer (for analysis)
- 2. High-parameter cell sorter (for cell sorting)
- 3. BD's Microwell-based scRNAseq / AbSeq
- 4. Droplet-based scRNAseq from 10xGenomics
- 5. Next Generation Sequencing Platform
- 6. Semi-automatic tissue section analysis platform
- 7. Microenvironment Multiplex Spatial Analysis System
- 8. T cell function analysis platform
- 9. Molecular Purification Platform
- 10. Vaccine Production Platform
◆ Overview of the entire higher-order immunological analysis platform
1. Introduction of Higher Level Immunological Analysis Platform
We believe that a more advanced analysis platform is needed than ever before to understand the characteristics of the complex human immune system and to identify problems and other issues. Therefore, we have developed a world-class analysis platform (high-level immunological analysis platform) that enables multifaceted, high-resolution analysis of differences in the immune system and responses to immunogens in each individual.
By utilizing the above platform, we hope to extract issues with current vaccines and therapies from analysis of various human clinical specimens, and to validate novel therapies or diagnostic biomarkers to solve such issues at the in vivo level in non-clinical studies using rodents and non-human primates, and hopefully return them to clinical use.

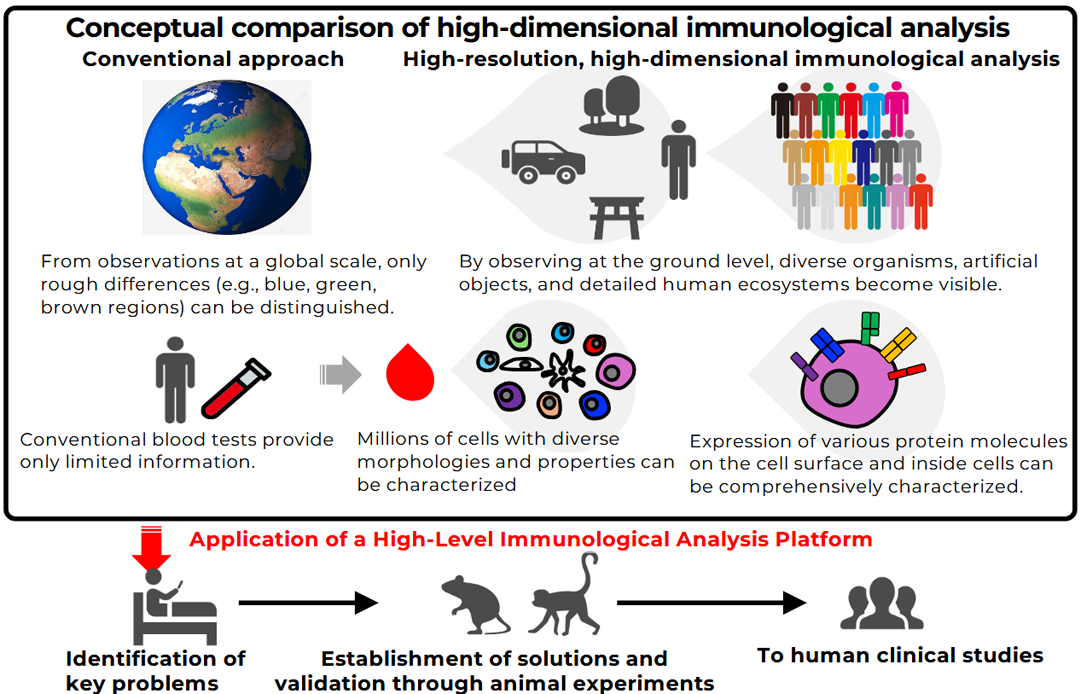

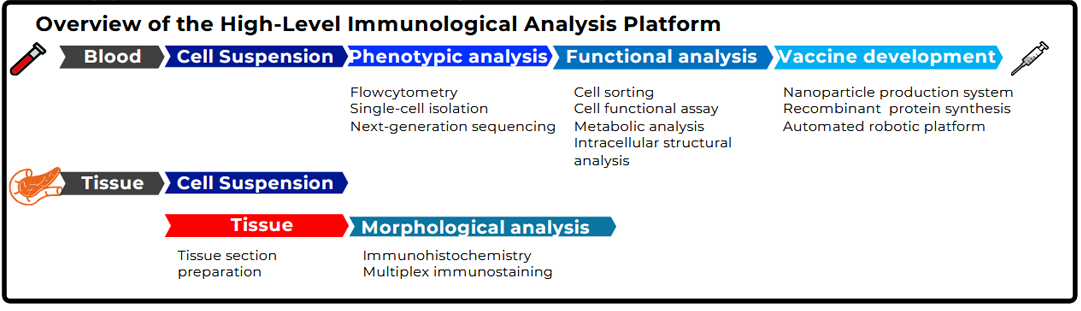

[Overview chart] Introduction of the platform for high-level immunological analysis
![Figurative Illustration of Higher Immunological Analysis](/assets/img/work/section01/image01.png)
![Higher-order Immunological Analysis Platform Overview](/assets/img/work/section01/image02.png)
◆ Introduction of each analysis platform

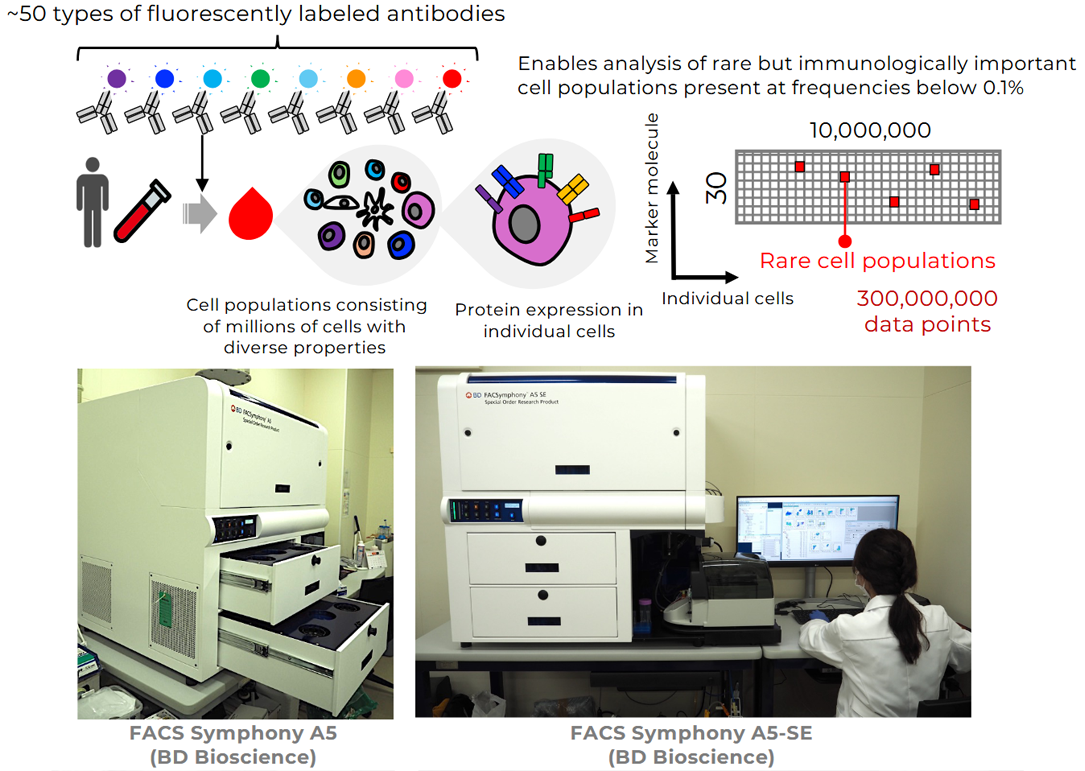

1. High-parameter flow cytometer (for analysis)
Flow cytometers:.An instrument for analyzing protein expression levels of cells in blood or tissue dispersion at a single cell level at a time.By analyzing the expression patterns of marker molecules with fluorescence-labeled antibodies or other means, subsets of cells can be classified and measured in detail. High-parameter flow cytometer is a state-of-the-art flow cytometer that can evaluate more than 30 different molecules at once.
[Overview chart] High-parameter flow cytometer (for analysis)
![High-parameter flow cytometer (for analysis)](/assets/img/work/section01/image03.png)

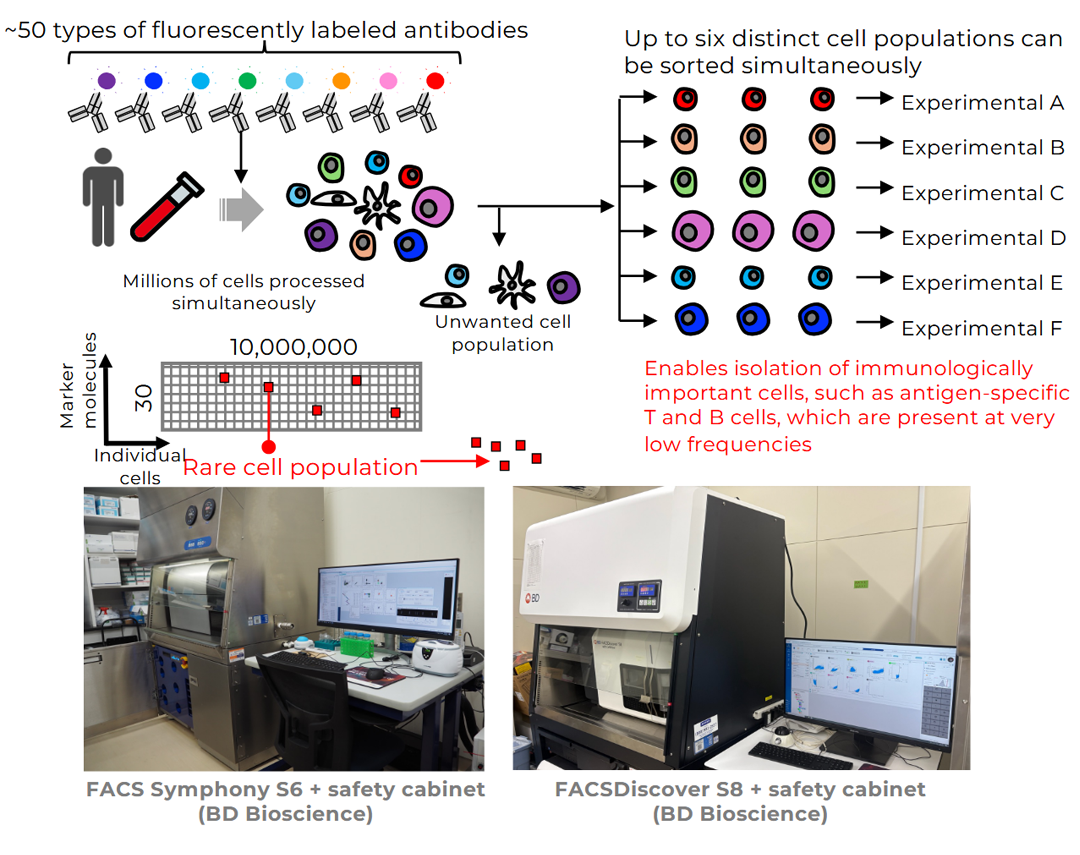

2. High-parameter cell sorter (for cell sorting)
Cell sorters:. A device that labels individual cells in a specific cell population in blood or tissue dispersion with fluorescently labeled antibodies, etc., and separates them in a live, clean environment using protein expression levels as an indicator.The High Parameter Cell Sorter is a state-of-the-art cell sorter that can evaluate more than 30 different molecules at once. Each sorted cell can be used for assays according to the cell type.
[Overview chart] High-parameter cell sorter (for cell sorting)
![High-parameter cell sorter (for cell sorting)](/assets/img/work/section01/image04.png)

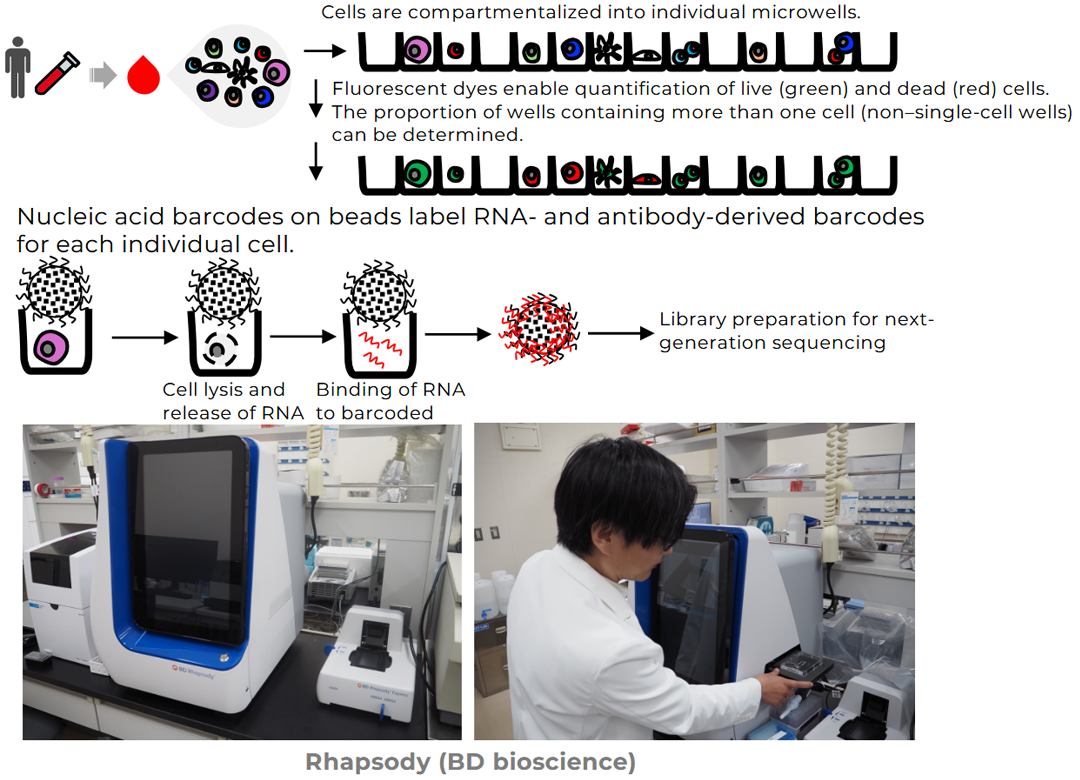

3. BD's Microwell-based scRNAseq / AbSeq
Library generator for single cell RNA sequencing (scRNAseq): BD's analyzer is a device that comprehensively analyzes the expression levels of genes and proteins of individual cells in blood and tissue dispersions at the single-cell level, where each cell is divided into sections by microwells and each section is labeled with a genetic barcode to distinguish individual cells.
[Overview chart] BD's Microwell-based scRNAseq / AbSeq
![BD's Microwell-based scRNAseq / AbSeq](/assets/img/work/section01/image05.png)
4. Droplet-based scRNAseq from 10xGenomics
Library generator for single cell RNA sequencing (scRNAseq): 10xGenomics' analyzer is a single-cell-level, comprehensive analyzer of gene and protein expression levels in blood and tissue dispersions, in which each cell is divided into droplets and each droplet is labeled with a gene barcode to distinguish individual cells.The system is designed to distinguish between individual cells by attaching a genetic barcode to each compartment.
[Overview chart] 10xGenomics' droplet-based scRNAseq
![Droplet-based scRNAseq from 10xGenomics](/assets/img/work/section01/image06.png)

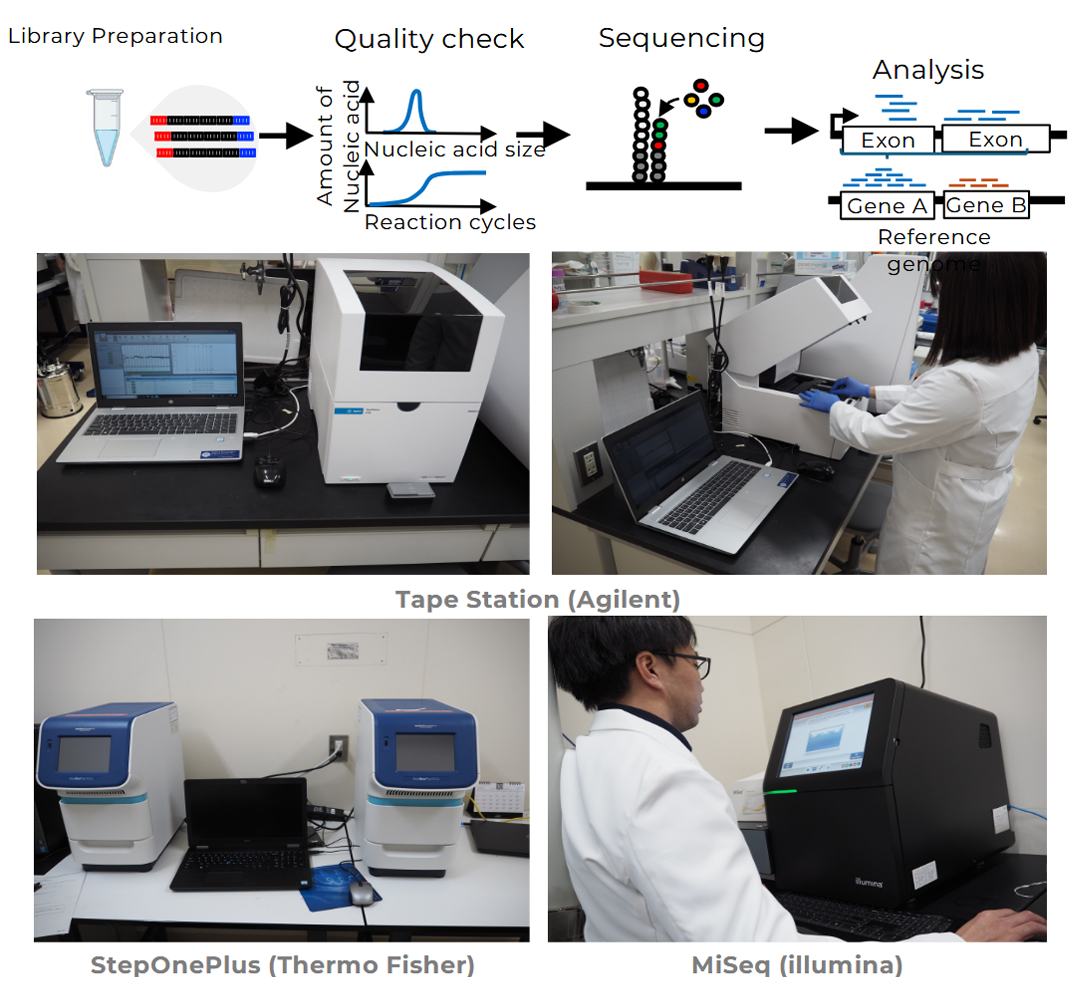

5. Next Generation Sequencing Platform
Next Generation Sequencing Platform: A series of platforms that can check the quality of libraries for next-generation sequencing analysis and sequence long sequences such as RNAseq, TCR Repathore, and HLA typing.
[Overview chart] Next Generation Sequencing Platform
![Next Generation Sequencing Platform](/assets/img/work/section01/image07.png)

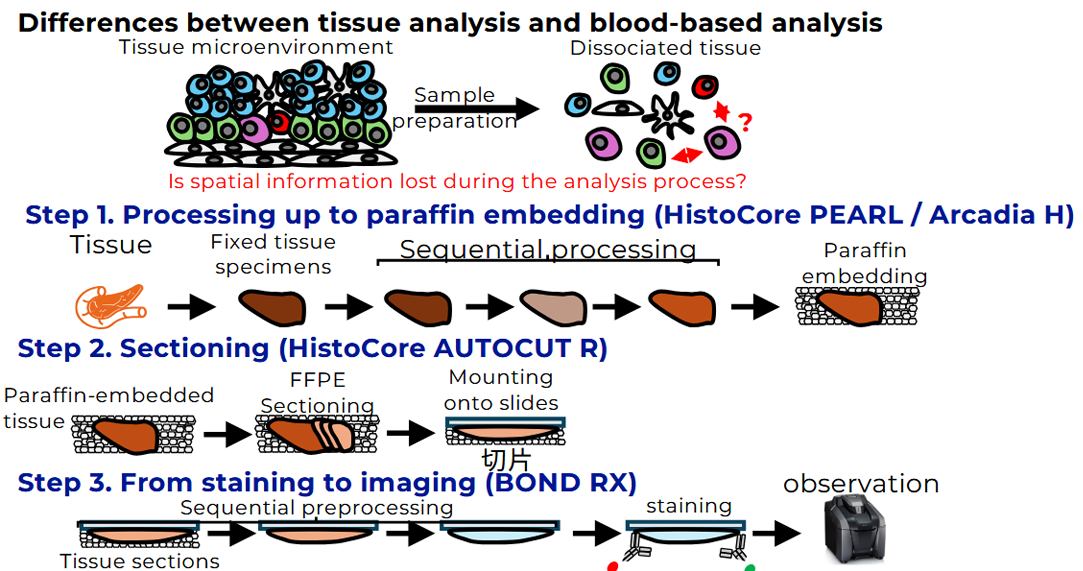

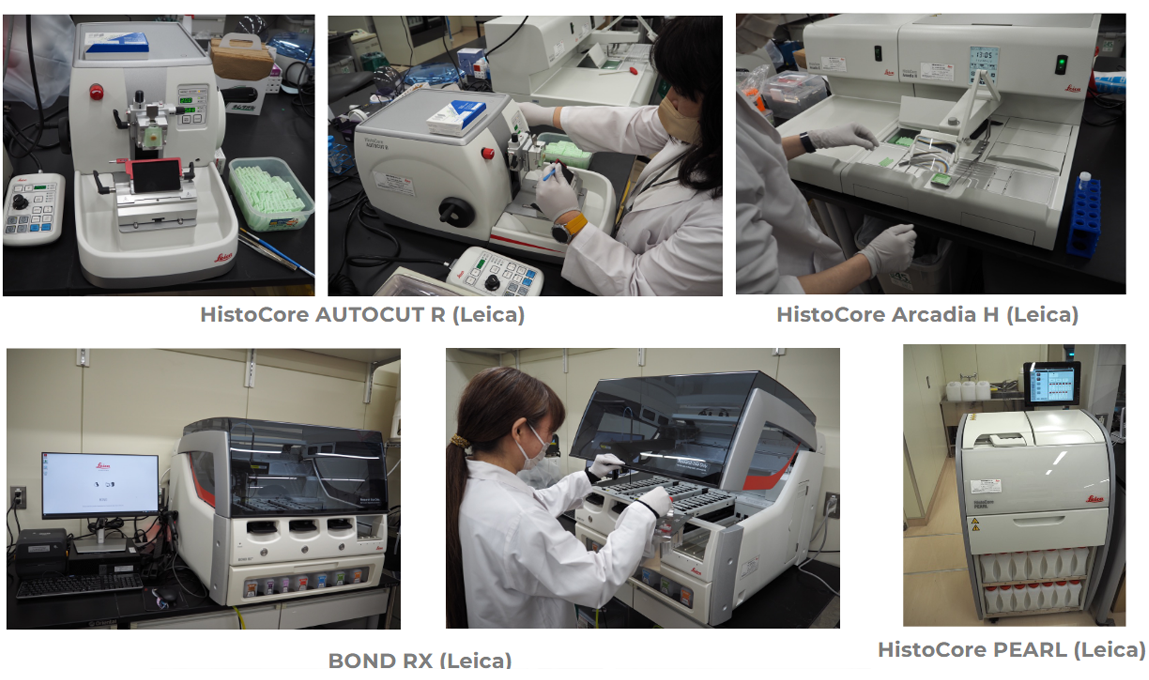

6. Semi-automatic tissue section analysis platform
Tissue section analysis platform: A platform for semi-automating a series of complicated processes from the preparation of sections from fixed excised tissue fragments obtained by surgery or other means to immunostaining.
[Overview chart] Semi-Automatic Tissue Section Analysis Platform
![Differences between tissue analysis and blood analysis](/assets/img/work/section01/image08.png)
HistoCore PEARL / HistoCre Arcadia H
Leica's high-performance automated tissue processing system can automate the processes of dehydration, permeabilization, maceration, and paraffin-embedding of specimens, enabling the preparation of high-quality, highly reproducible specimens.
HistoCore AUTOCUT R
The high-speed, high-precision automatic cutting function developed by Leica simplifies the sectioning process and allows the device to work more efficiently than manual operation for section preparation. This enables high-quality, highly reproducible sectioning and fast, efficient processing of large numbers of slides.
LeicaのBOND RX
Leica's BOND RX is a fully automated immunostaining system that automatically supplies reagents for immunostaining, automatically processes sections, automatically stains, automatically removes stains, and automatically dries sections.
7. Semi-automatic tissue section analysis platform
Tissue section analysis platform: A platform for the semi-automatic process of sectioning and immunostaining from fixed excised tissue fragments obtained by surgery or other means.
[Overview chart] Semi-Automatic Tissue Section Analysis Platform
![Semi-automatic tissue section analysis platform](/assets/img/work/section01/image09.png)
8. Microenvironment Multiplex Spatial Analysis System
Microenvironment Multiplex Spatial Analysis System: A system for detecting and analyzing the expression of numerous markers in the same section by simultaneously labeling tissue sections with numerous nucleic acid barcode-labeled antibodies, followed by detection by repeatedly attaching and removing the corresponding barcode-labeled fluorescent dye.
[Overview chart] Microenvironment Multiplex Spatial Analysis System
![Microenvironment Multiplex Spatial Analysis System](/assets/img/work/section01/image10.png)

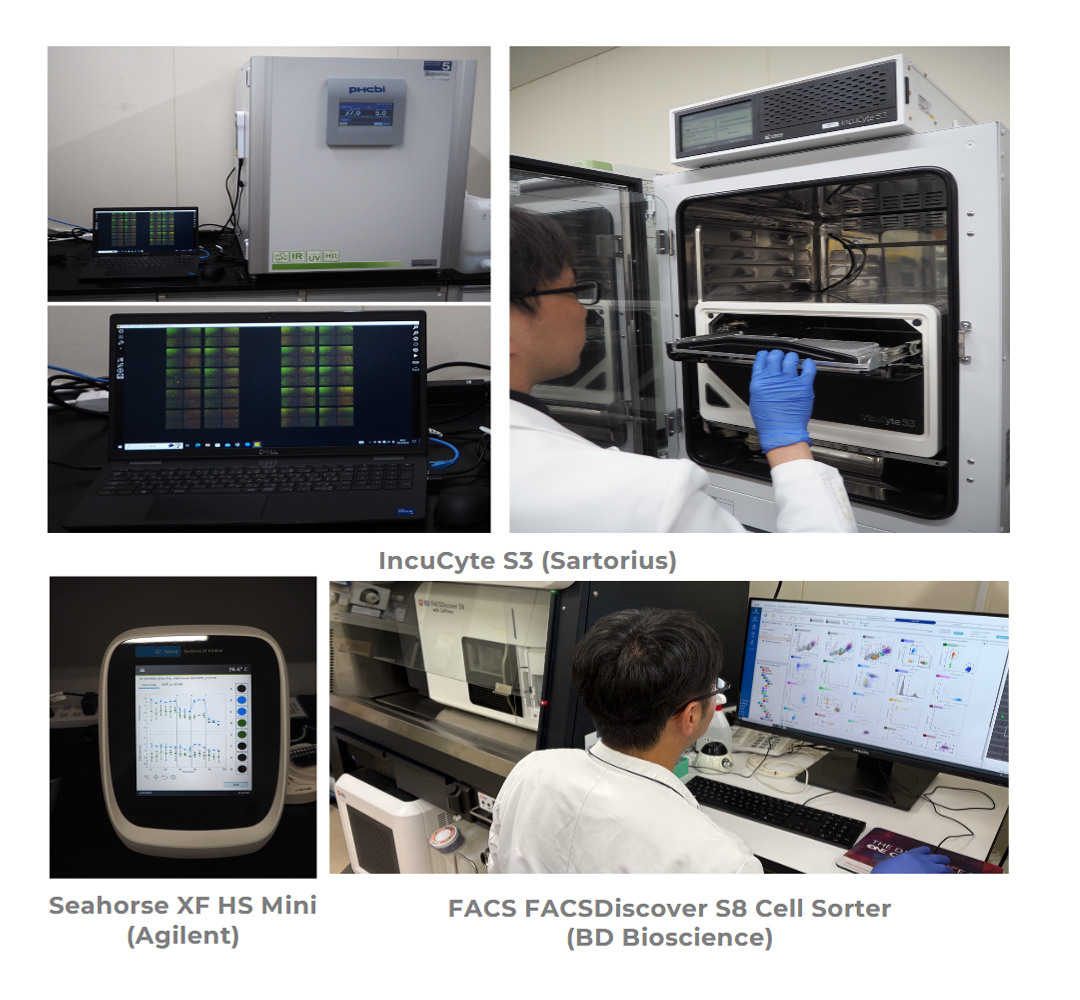

9. T cell function analysis platform
T cell function analysis platform:We have a detailed T cell function analysis system, including a multi-well imaging system (IncuCyte) that enables real-time imaging of cells in culture in an incubator for more than 24 hours and quantification of various cell functions, a system (Seahorse) that can monitor cellular metabolic responses and changes in mitochondrial function over time, and a specialized flow cytometer (ImageStream) that can acquire fluorescent-labeled images of cell membrane surface proteins and detailed structures. A detailed T cell function analysis system is in place, including a special flow cytometer (ImageStream) that can acquire fluorescent-labeled images of proteins and detailed structures.
[Overview chart] T-cell function analysis platform
![T cell function analysis platform](/assets/img/work/section01/image11.png)

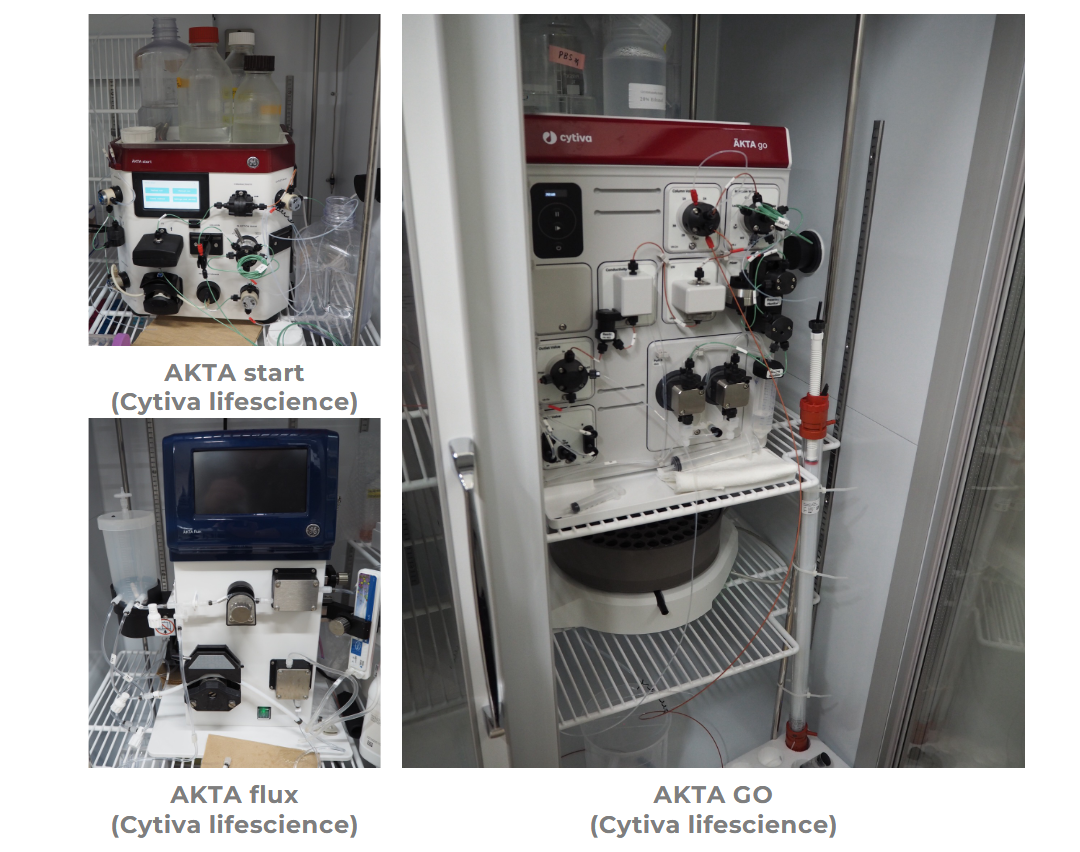

10. Molecular Purification Platform
Molecular Purification Platform: Chromatography system for separation and purification of artificial proteins such as recombinant antibodies and fluorescently labeled probes. Widely used in the development and manufacture of biologics.
[Overview chart] Molecular Purification Platform
![Molecular Purification Platform](/assets/img/work/section01/image12.png)

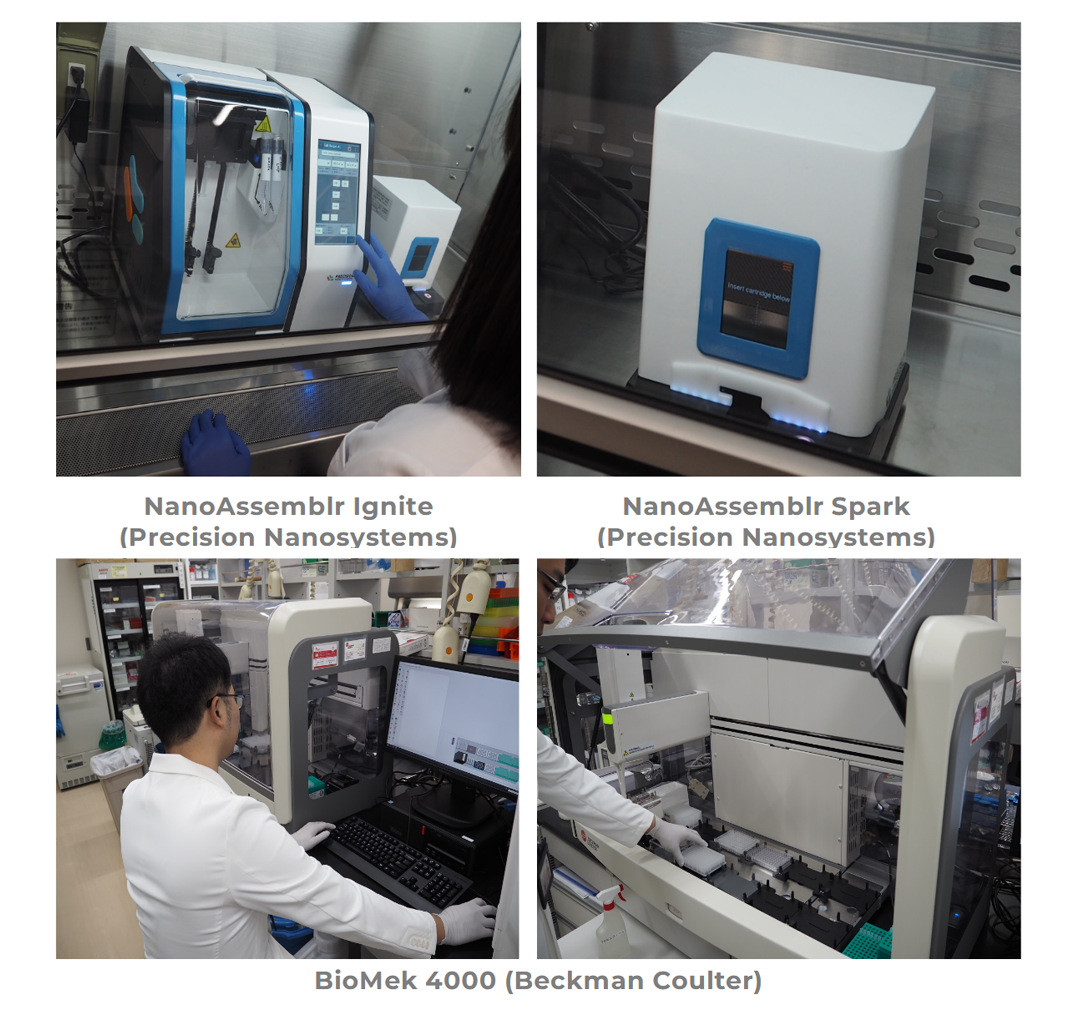

11. Vaccine Production Platform
Lipid nanoparticle preparation system for vaccines and robot for automated purification and dispensing: The ultra-high speed nano medicine preparation system is a system to prepare lipid nano-particles (LNPs) used for mRNA vaccines, etc. in a clean environment and with any lipid composition.The automated pipetting robot automatically dispenses prepared LNPs, nucleic acids, and protein samples under set conditions, and is also capable of automated purification of DNA and RNA.
[Overview chart] Vaccine Production Platform
![Vaccine Production Platform](/assets/img/work/section01/image13.png)
